Right Angle Turn Transition to Ground
- Attach string line from top of level landing to point where ramp
will end and attach Module #4 in the same manner as described for the
top level landing.
NOTE: The same options for transition to the ground are used for this design.
Guardrail/handrail options are also the same except an additional 4x4 post
is used at the inside corner of the landing so that guardrail can be attached
at the corner of the landing.

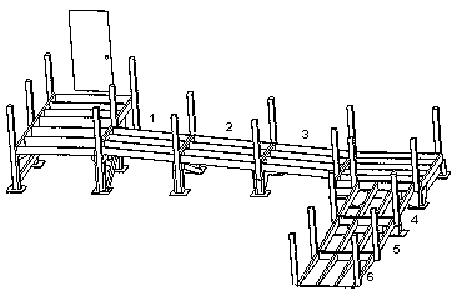

![[sketch of final section leaving mid-landing at 90 degree angle]](ramp-36a.gif)
![[top view of mid landing showing fifth 4x4]](ramp-36b.gif)
4x4 posts are positioned so that guardrails are above outside 1 1/2" perimeter of
landings and slope.
3" screws are used to attach rail to posts, always inserting screw through rail
and then into 4x4
