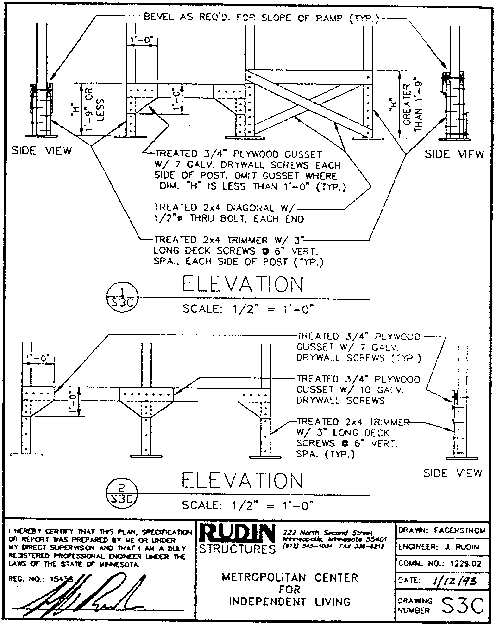

Rudin Drawing:Support Elevations S3C

[engineering drawing of supports]

Click here for large (44kb) version
